Details about the product
- FREQUENCY RANGE 1-54MHZ
- NUMERICAL AND BARGRAPH DISPLAY
- SIMULTANEOUS POWER AND SWR DISPLAY
- AVG/PEP
- LINEAR AMPLIFIER PROTECTION IN CASE SWR >2:1
- 1-2000W (IF YOU NEED OTHER MEASUREMENTS CONTACT ME)
- FULL AUTOMATIC MEASUREMENTS
- BIG LCD DISPLAY 98X22mm
- DIAMENSIONS 140X120X95mm
- POWER SUPPLY 12V 1A INCLUDED
DETAILS
Details about the product
- DDS 100KHz-30MHz TRANSMITTER AM-CW
- One Rotary Encoder For All Functions
- 2 x 16 Character LCD Display
- AM Modulation
- Step Size 1Hz,10Hz,100Hz,1KHz,10KHz,100KHz,1MHz
- PTT Mode (if you remove the onboard jumper)
- Saves Last Frequency
- RF Output +11dbm PEP/50 ohm (2.5Vp-p Adjustable)
- Harmonics-Spurious >-70db or Better
- Audio Frequency Response 20- 50000 Hz
- Automatic Low Pass Filter Switching Depends On Frequency
- 7-Pole Elliptic Low Pass Filter 30 Mhz
- Best Audio Quality (Audio Distortion 0.009 at 1.0Khz)
- Flat RF Response 200Khz-30Mhz
- Range 10....100m
- Power Supply 12V/500ma
- Pcb 13,8 X 4,6 cm
DETAILS
Details about the product
- 1.00-30.00 MHZ (typical from 500Khz-54Mhz)
- Output 50 Ohm
- 15W PeP / 50 Ohm (20w PeP/16v)
- Class A
- Rf Power MOSFET Mitsubishi
- Supply Voltage 14-16 Vdc/3A
- Input Power 1mw in---->9w out pep 2,5mw in---->19,5w out pep
- Power Gain 39db
- Full Broadband Design up to 30MHZ
- Pcb Diam:L(11.5cm) W(8.4cm)
DETAILS
Details about the product
- BLF188XR LDMOS AMPLIFIER 1.8-54MHZ 1KW
- AUTOMATIC RF BAND DECODER FOR ALL AMATEUR BANDS
- 160M-80M-40M-30M-20M-17M-15M-12M-10M-6M
- POWER SUPPLY 3KW INCLUDED
- RF OUT 1KW AT ALL BANDS
- INPUT POWER 1-40W
- HI RF INPUT PROTECTION
- HI CURRENT PROTECTIO
- HI SWR PROTECTION
- HI TEMPERATURE PROTECTION
DETAILS
Details about the product
- DDS 100KHz-30MHz TRANSMITTER AM-CW
- One Rotary Encoder For All Functions
- 2 x 16 Character LCD Display
- AM Modulation
- Step Size 1Hz,10Hz,100Hz,1KHz,10KHz,100KHz,1MHz
- PTT Mode (if you remove the onboard jumper)
- Saves Last Frequency
- RF Output 20W PEP Adjustable
- Audio Frequency Response 20- 50000 Hz
- Best Audio Quality (Audio Distortion 0.009 at 1.0Khz)
- Power Supply 15V/5a
- Pcb 143mm x 77mm
DETAILS
Details about the product
- FREQUENCY RANGE 1-54MHZ
- 7 LOW PASS FILTERS FOR 160M TO 6M
- 160M-80M-40M-30/20M-17/15M-12/10M-6M
- 1.1 SWR AT INPUTS
- FULL OPTIMIZED BY NETWORK ANALYZER
- ATC100B CAPACITORS
- T130-2 & T130-6 TOROIDS FROM AMIDON
- REDUCES THE HARMONICS HIGHER THAN 50DB
- 12V OPERATION
- YOU MUST ENABLE GROUND PIN OF RELAY TO OPERATE THE FILTER
DETAILS
Details about the product

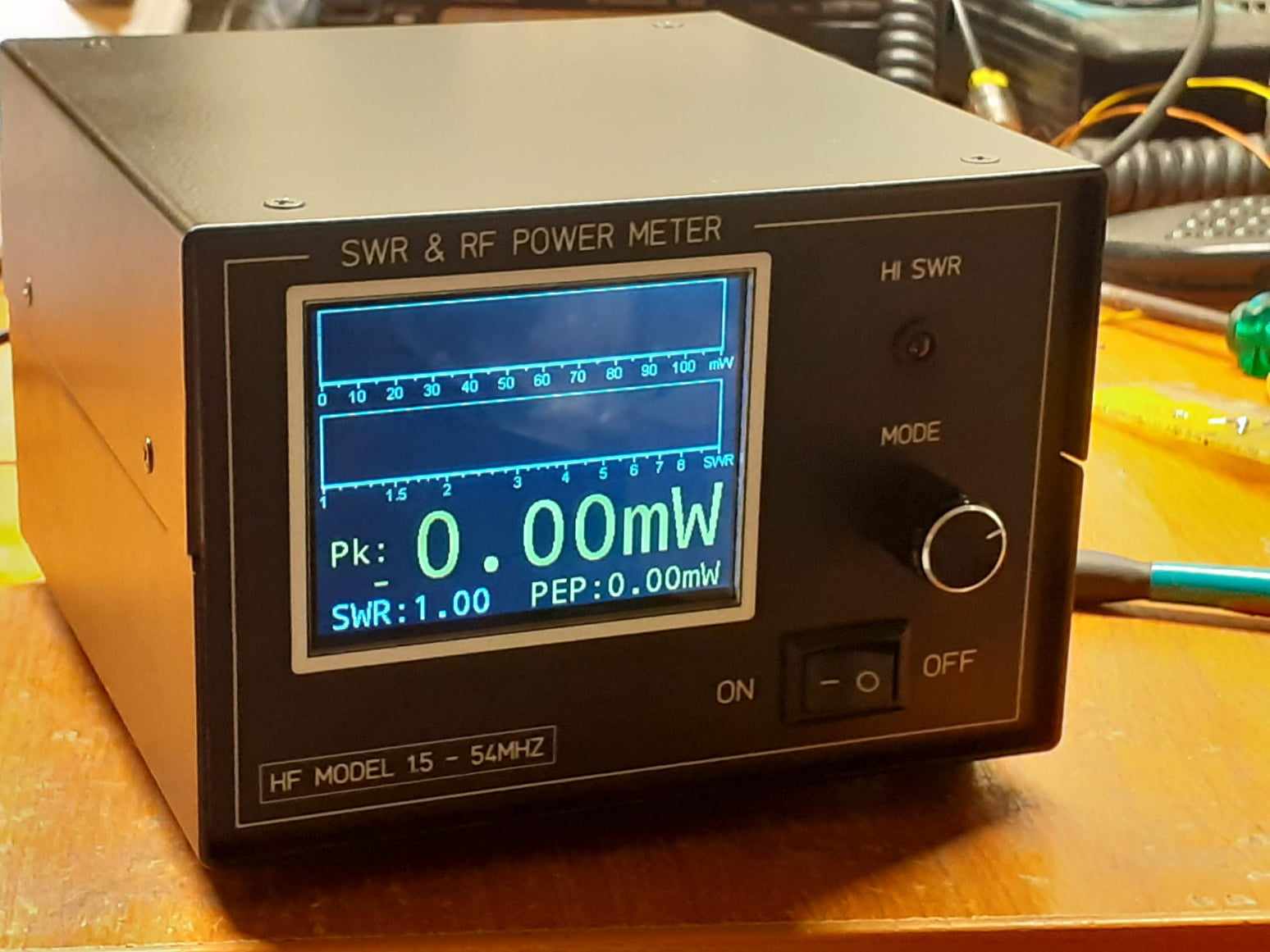

- 1.8 MHz - 54MHz
- 1mw - 4kw (if you need other measurements, please contact me)

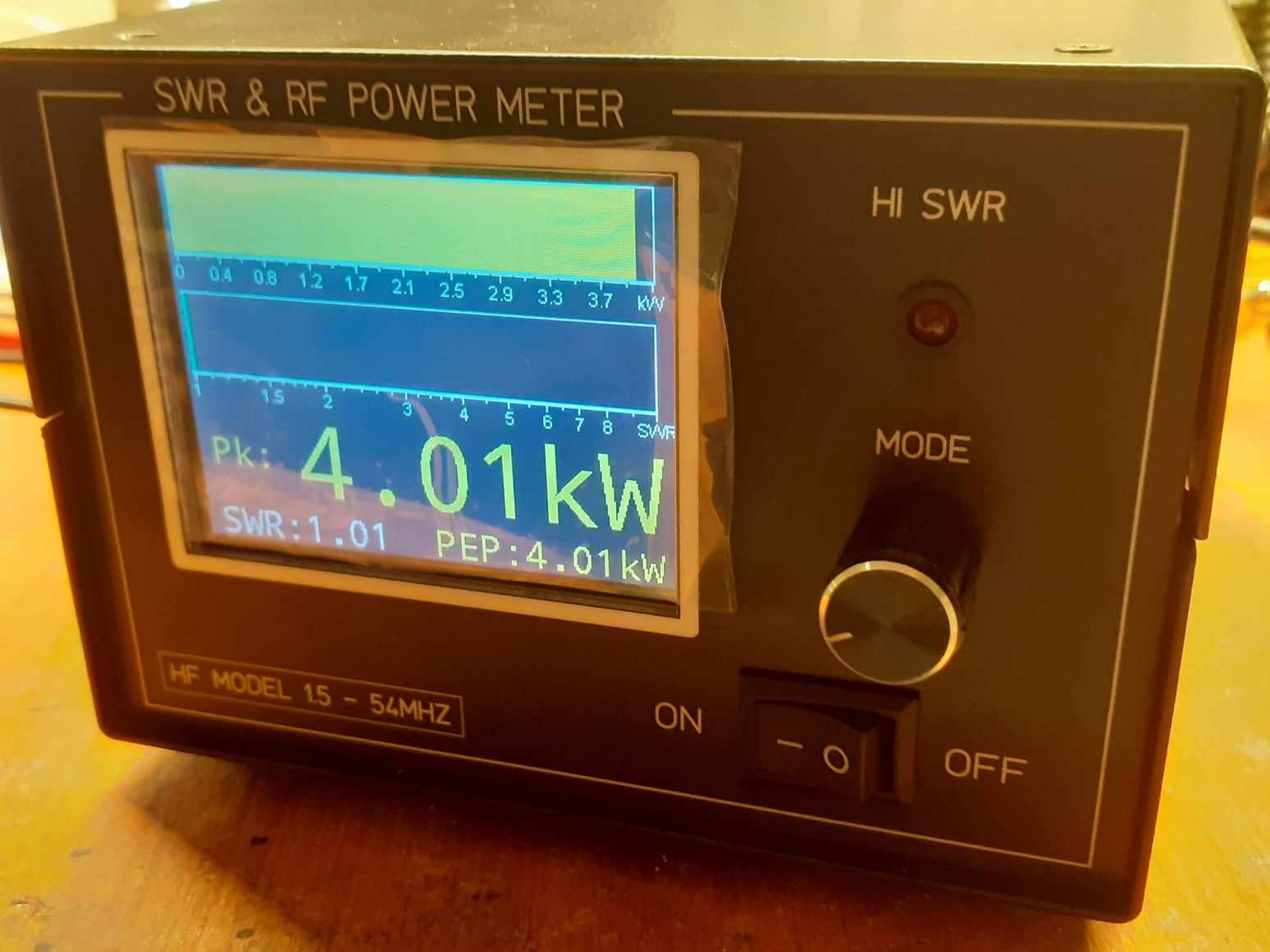

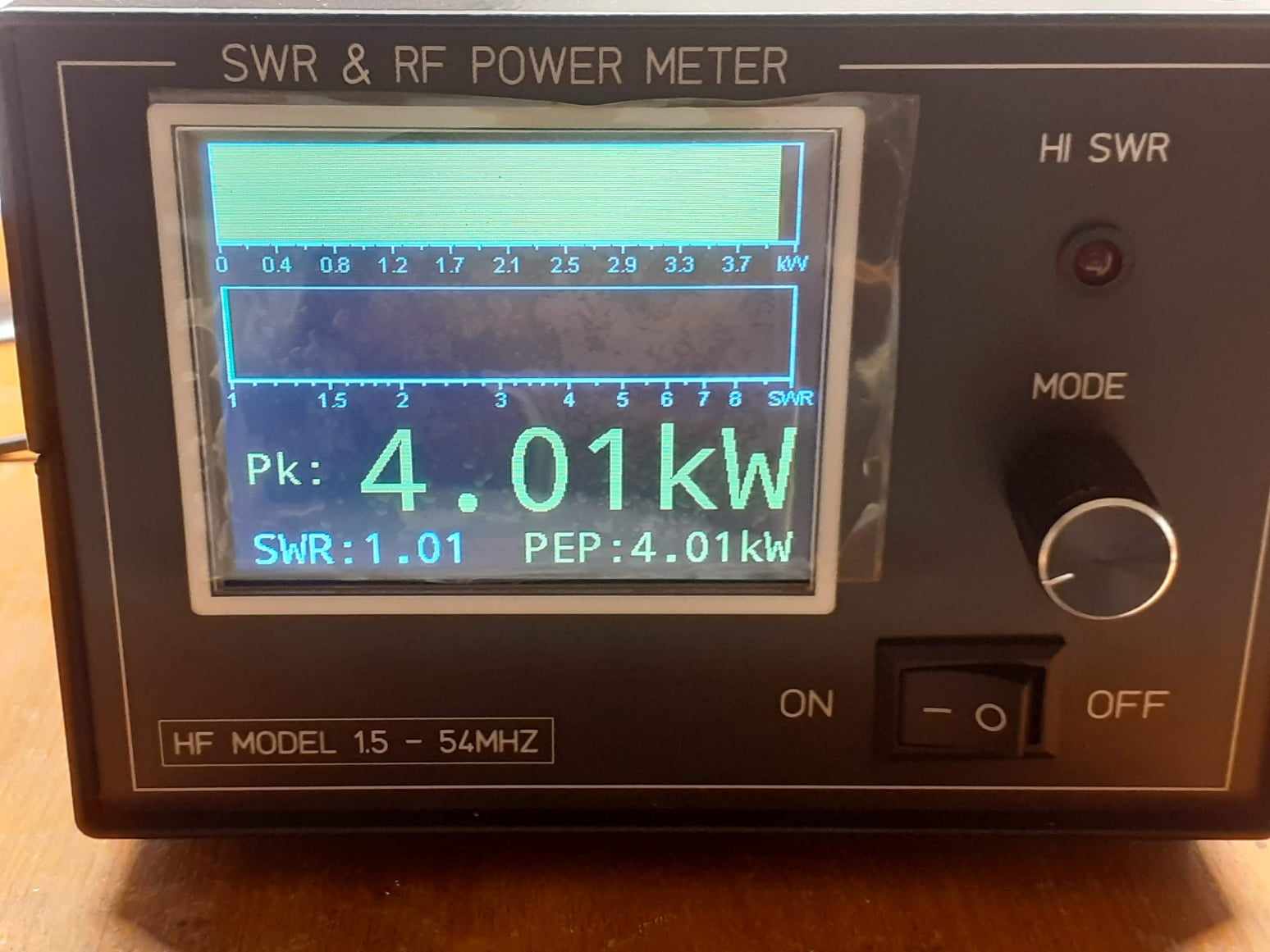

- TFT 3.2" Touch Screen Color Display
- Adjustable SWR Alarm (PTT controlled, for Amplifier fully protection)

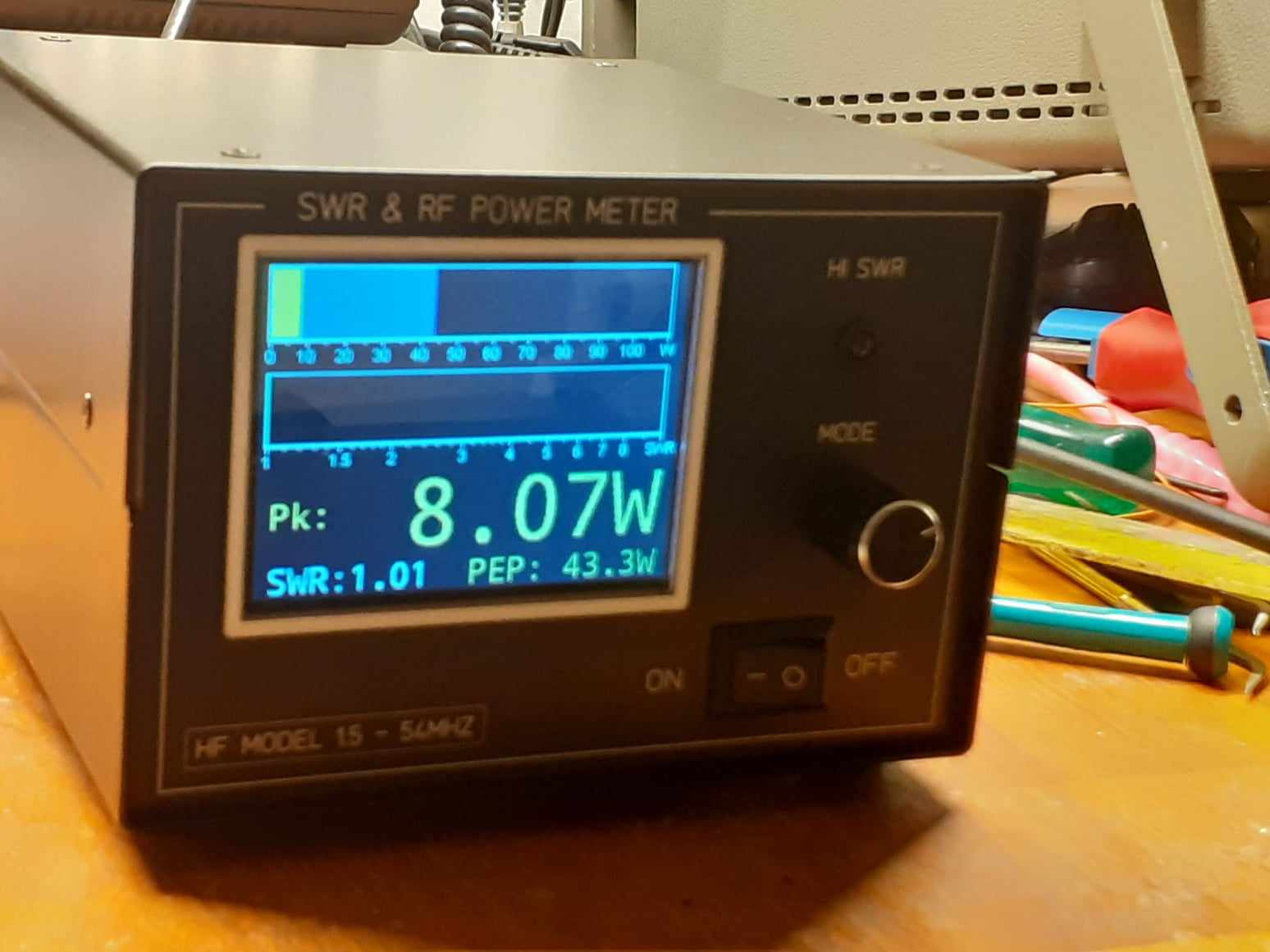

- Auto Ranging (mw to kw)

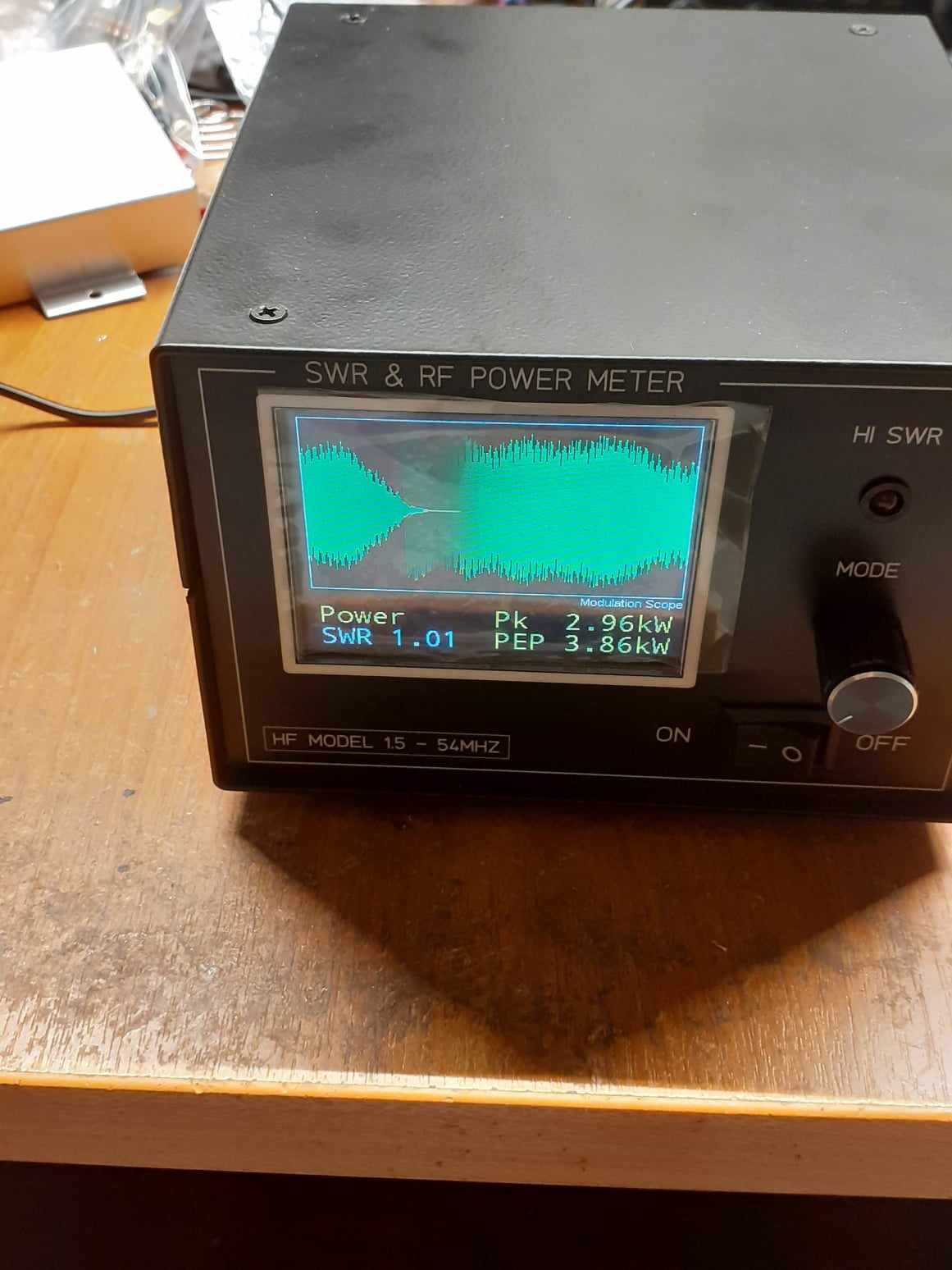

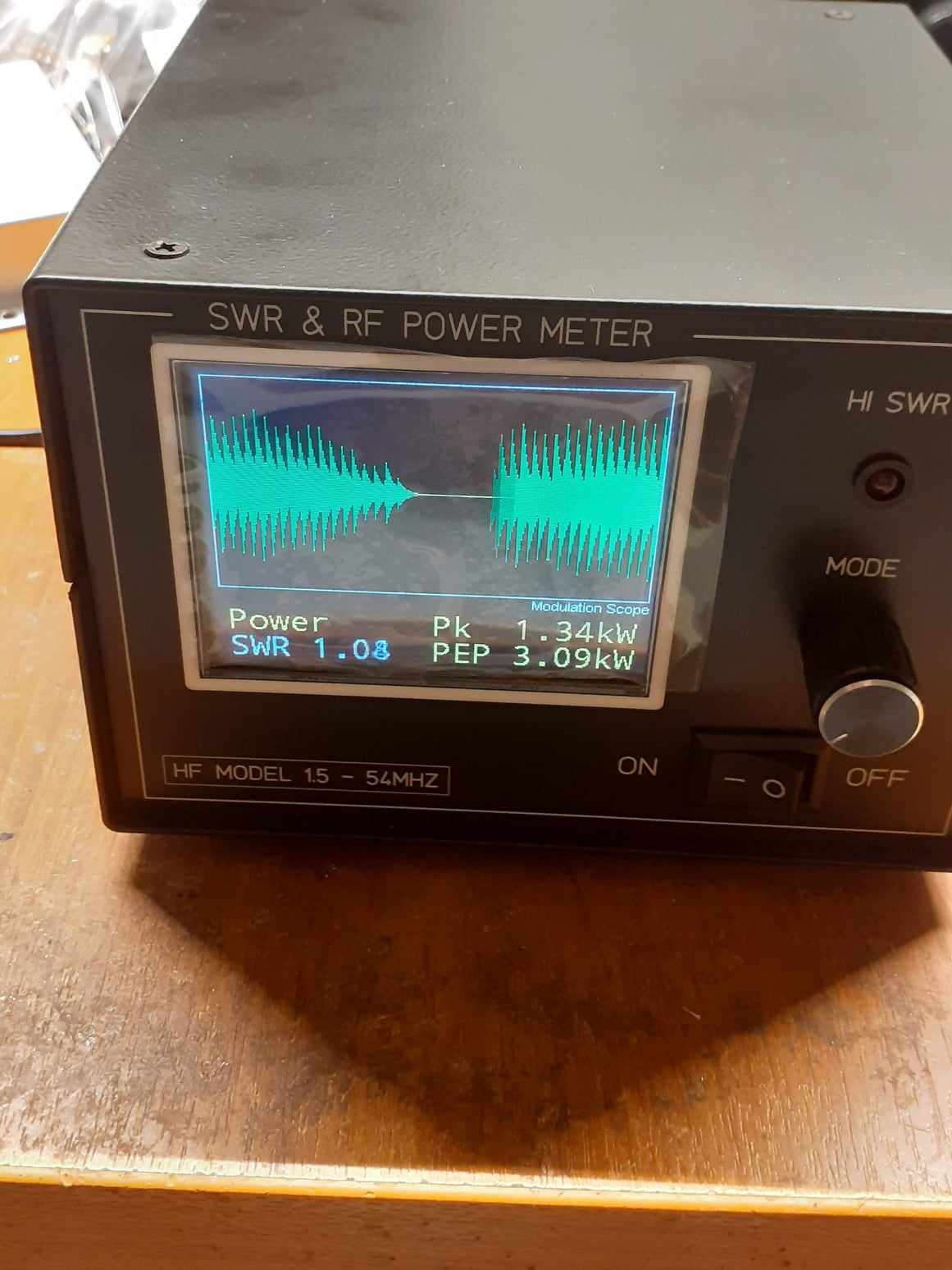

- Modulation Scope Meter
- Rotate & Push navigation of menus
- Fully callibrated with Bird 43
- Reverse Polarity Protection
- Power Plug Cable Included
- Lifetime Warranty as always
